Water Hose




 WATER SUCTION 10BAR

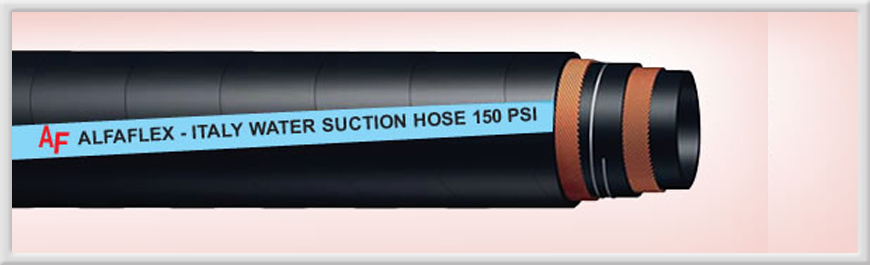

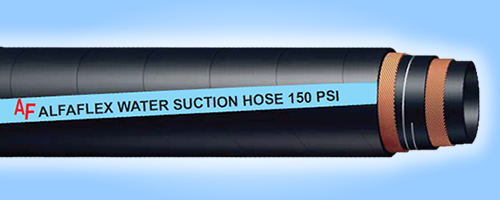

Alfaflex Water Suction Hose 150 PSI
This hose is constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling.

T Black EPDM/SBR blended compound
C Black EPDM/SBR blended compound
R Multiple textile plies with dual helix wire
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 4:1
B ALFAFLEX WATER SUCTION HOSE ---150 PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 25.4 1.417 36.0 200 60 6 150 150 10 0.89
1 1/4 31.8 1.669 42.4 200 60 8 200 150 10 1.04
1 1/2 38.1 1.917 48.7 200 60 10 250 150 10 1.21
2 50.8 2.433 61.8 200 60 12 300 150 10 1.69
2 1/2 63.5 2.933 74.5 200 60 15 375 150 10 2.04
3 76.2 3.465 88.0 200 60 20 500 150 10 2.86
4 101.6 4.465 116.4 200 60 28 700 150 10 3.70
5 127.0 5.638 143.2 200 60 40 1,000 150 10 5.02
6 152.4 6.701 170.2 100 30 48 1,200 150 10 6.26
8 203.2 8.787 223.2 100 30 64 1,600 150 10 9.59
10 254.0 10.976 278.8 40 12 100 2,500 150 10 13.93
12 304.8 13.055 331.6 40 12 120 3,000 150 10 22.57
 WATER SUCTION 20BAR
Alfaflex Water Suction Hose 300 PSI
This hose is constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling.

T Black EPDM/SBR blended compound
C Black EPDM/SBR blended compound
R Multiple textile plies with dual helix wire
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 4:1
B ALFAFLEX WATER SUCTION HOSE ---300 PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 25.4 1.417 36.0 200 60 6 150 300 20 0.89
1 1/4 31.8 1.669 42.4 200 60 8 200 300 20 1.04
1 1/2 38.1 1.917 48.7 200 60 10 250 300 20 1.21
2 50.8 2.433 61.8 200 60 12 300 300 20 1.69
2 1/2 63.5 2.933 74.5 200 60 15 375 300 20 2.04
3 76.2 3.465 88.0 200 60 20 500 300 20 2.86
4 101.6 4.465 113.4 200 60 28 700 300 20 3.70
Extra kink resistance: 5� ~ 10� corrugated cover
5 127.0 5.638 143.2 200 60 40 1,000 300 20 5.02
6 152.4 6.701 170.2 100 30 48 1,200 300 20 6.26
8 203.2 8.787 223.2 100 30 64 1,600 300 20 9.59
10 254.0 10.976 278.8 40 12 100 3,000 300 20 13.93
 WATER DISCHARGE
Alfaflex Water Discharge Hose 150 PSI
Soft-wall design gives similar performance to a lay flat hose but with increased abrasion resistance and tensile strength. This hose is made of premium quality EPDM/SBR blend for maximum weather resistance and life in abrasive service.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX OIL DISCHARGE HOSE 200PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Working Pressure Approx. Weight
in mm in mm ft m PSI kg/cm2 kg/m
2 50.8 2.268 57.6 200 60 150 10 0.82
2 1/2 63.5 2.768 70.3 200 60 150 10 1.01
3 76.2 3.268 83.0 200 60 150 10 1.18
4 101.6 4.315 109.6 200 60 150 10 1.93
5 127.0 5.315 135.0 200 60 150 10 2.59
6 152.4 6.315 160.4 200 60 150 10 2.87
8 203.2 8.378 212.8 100 30 150 10 4.54
10 254.0 10.409 264.4 100 30 75 5 6.14
* Standard Hose Length : 200ft(60m), 100ft(30m)
