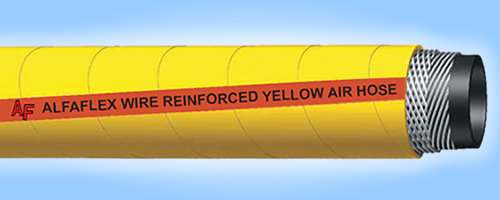

| Alfaflex Wire Reinforced Yellow Air Hose 580 PSI |
|
| This hose is designed for the most severe working conditions in mining, quarries, industrial and construction service. This mandrel built hose has a high margin of safety and gives a long and trouble free service under the most arduous working conditions. |
|
 T Black oil resistant Nitrile (NBR)
C Yellow NR / SBR blended compound
R Multiple steel wire cord plies
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 3:1
B ALFAFLEX WIRE REINFORCED AIR HOSE 580 - PSI W.P
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
|
| I.D. |
Reinf. Plies |
O.D. |
Standard Length |
Working Pressure |
Approx. Weight |
| in |
mm |
in |
mm |
ft |
m |
PSI |
kg/cm2 |
kg/m |
| 3/4 |
19.1 |
2 |
1.224 |
31.1 |
200 |
60 |
1,000 |
70 |
0.95 |
| 1 |
25.4 |
2 |
1.472 |
37.4 |
200 |
60 |
700 |
50 |
1.14 |
| 1 1/2 |
38.1 |
2 |
1.972 |
50.1 |
200 |
60 |
580 |
40 |
1.52 |
| 2 |
50.8 |
2 |
2.535 |
64.4 |
200 |
60 |
580 |
40 |
2.24 |
| 2 1/2 |
63.5 |
2 |
3.098 |
78.7 |
200 |
60 |
580 |
40 |
2.96 |
| 3 |
76.2 |
4 |
3.787 |
96.2 |
200 |
60 |
580 |
40 |
5.09 |
| 4 |
101.6 |
4 |
4.787 |
121.6 |
200 |
60 |
580 |
40 |
6.48 |
|

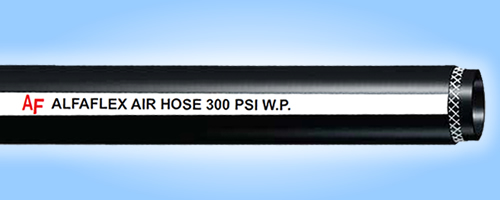

| Alfaflex Air Hose 300 PSI WP. |
|
| General service hose for a wide variety of air and water applications. Specially designed for excellent sunlight and ozone resistance. |
|
 T Black color of NR/NBR blends. resistance to oil.
C Black color of NR/NBR blends. resistance to oil traces, abrasion and weather.
R High tensile synthetic yarn.
T.P. -40°C to +85°C
S.F. 3:1
B ALFAFLEX AIR HOSE 300 PSI WP.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
|
| I.D. |
O.D. |
Standard Length |
Working Pressure |
Burst Preassure |
| in |
mm |
mm |
m |
psi |
bar |
psi |
bar |
| 1/4 |
6 |
13 |
100 |
300 |
20 |
900 |
60 |
| 5/16 |
8 |
15 |
100 |
300 |
20 |
900 |
60 |
| 3/8 |
9.5 |
17 |
100 |
300 |
20 |
900 |
60 |
| 1/2 |
12.7 |
21 |
100 |
300 |
20 |
900 |
60 |
| 5/8 |
16 |
25 |
100 |
300 |
20 |
900 |
60 |
| 3/4 |
19 |
29 |
100 |
300 |
20 |
900 |
60 |
| 1 |
25.4 |
36 |
100 |
300 |
20 |
900 |
60 |
| 1 1/4 |
31.8 |
45 |
60 |
300 |
20 |
900 |
60 |
| 1 1/2 |
38.1 |
53 |
60 |
300 |
20 |
900 |
60 |
| 2 |
50.8 |
66 |
60 |
300 |
20 |
900 |
60 |
| 2 1/2 |
63.5 |
78 |
60 |
300 |
20 |
900 |
60 |
| 3 |
76.2 |
90 |
60 |
300 |
20 |
900 |
60 |
| 4 |
102.4 |
120 |
60 |
300 |
20 |
900 |
60 |
|

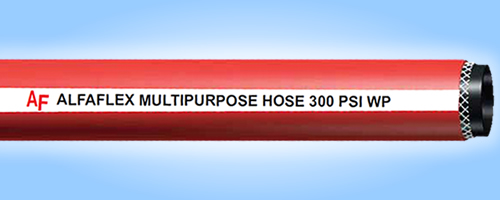

| Alfaflex Multipurpose Hose 300 PSI WP. |
|
| General service hose for a wide variety of air and water applications. Specially designed for excellent sunlight and ozone resistance. |
|
 T Black color of NBR blend compound. Oil and non-aggressive chemical resistant.
C Red color of NBR/EPDM blend compound. Oil, abrasion and weather resistant. Also available in blue, green and yellow color.
R High tensile synthetic yarn.
S.F. 3:1
B ALFAFLEX MULTIPURPOSE HOSE 300 PSI WP.
* T - Tube, C - Cover, R - Reinforcement, S.F. - Safety Factor, B - Branding.
|
|
| I.D. |
O.D. |
Standard Length |
Working Pressure |
Burst Preassure |
| in |
mm |
mm |
m |
psi |
bar |
psi |
bar |
| 1/4 |
6.0 |
13.0 |
100 |
300 |
20 |
900 |
60 |
| 3/8 |
9.5 |
17.0 |
100 |
300 |
20 |
900 |
60 |
| 1/2 |
12.7 |
21.0 |
100 |
300 |
20 |
900 |
60 |
| 3/4 |
19.0 |
29.0 |
100 |
300 |
20 |
900 |
60 |
| 1 |
25.4 |
35.5 |
100 |
300 |
20 |
900 |
60 |
| 1.1/4 |
31.8 |
44.0 |
100 |
300 |
20 |
900 |
60 |
| 1.1/2 |
38.1 |
54.0 |
50 |
300 |
20 |
900 |
60 |
| 2 |
50.8 |
65.0 |
30 |
300 |
20 |
900 |
60 |
|
