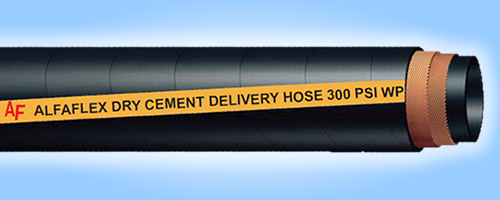

| Alfaflex Dry Cement Delivery Hose 300 PSI WP |
|
| Abrasion resistant tube and cover fabricated with highest quality elastomer compounds for maximum performance. Used in the transfer of dry materials & slurries and ideal for dry cement, pebble, lime brine, barite and other abrasive media. |
|
 T Black NR/SBR rubber blend
C Black NR/SBR rubber blend
R Multiple textile plies
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 4:1
B ALFAFLEX BULK / CEMENT DISCHARGE HOSE 300 - PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
|
| I.D. |
O.D. |
Standard Length |
Working Pressure |
Burst Pressure |
Approx. Weight |
| in |
mm |
mm |
ft |
m |
psi |
bar |
psi |
bar |
kg/m |
| 2 |
50.8 |
70 |
200 |
60 |
300 |
20 |
900 |
60 |
2.05 |
| 2.1/2 |
63 |
89 |
200 |
60 |
300 |
20 |
900 |
60 |
2.60 |
| 3 |
76.2 |
96 |
200 |
60 |
300 |
20 |
900 |
60 |
3.13 |
| 4 |
101.6 |
124 |
200 |
60 |
300 |
20 |
900 |
60 |
4.60 |
| 5 |
127 |
153 |
200 |
60 |
300 |
20 |
900 |
60 |
6.99 |
| 6 |
152 |
170 |
200 |
60 |
150 |
10 |
450 |
30 |
8.21 |
|

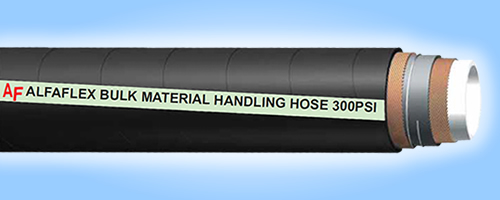

| Alfaflex Bulk Material Handling Hose 300 PSI |
|
| Abrasion resistant tube and cover fabricated with highest quality elastomer compounds for maximum performance. Used in the transfer of dry materials & slurries and ideal for dry cement, pebble, lime brine, barite and other abrasive media. |
|
|
 T Black NR/SBR rubber blend
C Black NR/SBR rubber blend
R Multiple textile plies, supported with wire helix
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 4:1
B ALFAFLEX BULK / CEMENT SUCTION HOSE 300-PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
|
|
| I.D. |
Reinf. Plies |
O.D. |
Standard Length |
Bend Radius |
Working Pressure |
Approx. Weight |
| in |
mm |
in |
mm |
ft |
m |
in |
mm |
PSI |
kg/cm2 |
lbs/ft |
kg/m |
| 2 |
50.8 |
2 |
2.882 |
73.2 |
200 |
60 |
12 |
300 |
300 |
20 |
2.24 |
3.33 |
| 2 1/2 |
63.5 |
2 |
3.382 |
85.9 |
200 |
60 |
15 |
375 |
300 |
20 |
2.65 |
3.95 |
| 3 |
76.2 |
2 |
3.921 |
99.6 |
200 |
60 |
20 |
500 |
300 |
20 |
3.36 |
5.00 |
| 4 |
101.6 |
2 |
4.953 |
125.8 |
200 |
60 |
28 |
700 |
300 |
20 |
4.40 |
6.55 |
| 5 |
127.0 |
2 |
6.079 |
154.4 |
100 |
30 |
25 |
625 |
300 |
20 |
5.56 |
8.28 |
| 6 |
152.4 |
2 |
7.087 |
180.0 |
100 |
30 |
36 |
900 |
150 |
10 |
6.60 |
9.83 |
| 8 |
203.2 |
2 |
9.362 |
237.8 |
100 |
30 |
56 |
1,400 |
150 |
10 |
10.97 |
16.33 |
| 10 |
254.0 |
2 |
11.512 |
292.4 |
100 |
30 |
80 |
2,000 |
150 |
10 |
14.89 |
22.15 |
| 12 |
304.8 |
2 |
13.591 |
345.2 |
100 |
30 |
110 |
2,750 |
150 |
10 |
18.50 |
27.53 |
|
|
| * Standard Hose Length : 200ft(60m), 100ft(30m) |
