Mud Hose

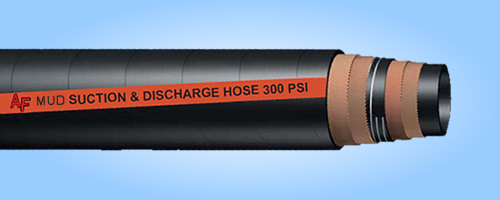

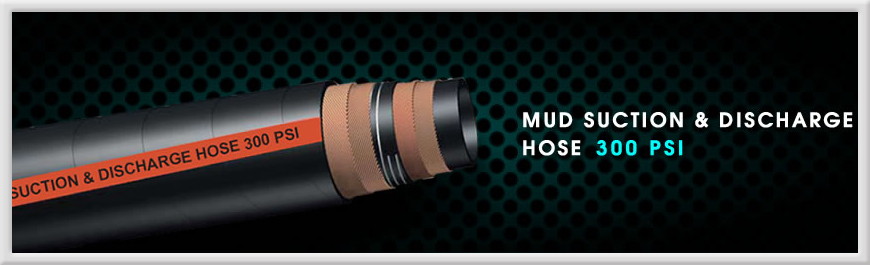

 Mud Suction & Discharge Hose 300 PSI
This hose is designed for offshore drilling and other demanding applications where longer lengths and fewer connections are desired. Premium hose design for superior performance and higher working pressure in tough environments. Cover withstands exposure to weather, salt water, sunlight and oil.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX MUD SUCTION & DISCHARGE HOSE 300 PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 1/2 38.1 1.953 49.6 200 60 10 250 300 20 1.25
2 50.8 2.504 63.6 200 60 12 300 300 20 1.87
2 1/2 63.5 3.004 76.3 200 60 16 400 300 20 2.30
3 76.2 3.622 92.0 200 60 20 500 300 20 3.23
4 101.6 4.717 119.8 200 60 28 700 300 20 4.97
6 152.4 6.925 175.9 100 30 48 1,200 300 20 9.30
8 203.2 9.05 230 100 30 64 1,600 300 20 14.5
