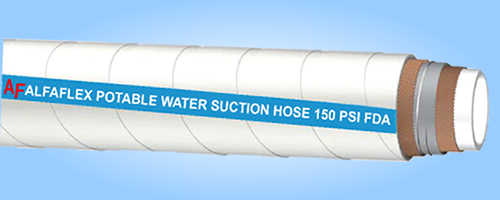

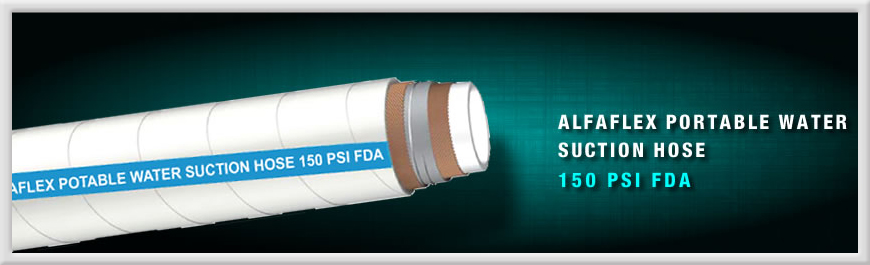

| Alfaflex Potable Water Suction Hose 150 PSI FDA |
|
| Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils. |
|
 T White NBR compound
C White Neoprene compound
R Multiple textile plies with helix wire
T.P. -20°F to +180°F (-30° C to + 80°C)
S.F. 4:1
B ALFAFLEX FDA / POTABLE WATER SUCTION HOSE 150 PSI WP.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
| I.D. |
O.D. |
Standard Length |
Bend Radius |
Working Pressure |
Approx. Weight |
| in |
mm |
in |
mm |
ft |
m |
in |
mm |
PSI |
kg/cm2 |
kg/m |
| 1 |
25.4 |
1.480 |
37.6 |
200 |
60 |
6 |
150 |
150 |
10 |
1.13 |
| 1 1/4 |
31.8 |
1.732 |
44.0 |
200 |
60 |
8 |
200 |
150 |
10 |
1.32 |
| 1 1/2 |
38.1 |
1.980 |
50.3 |
200 |
60 |
10 |
250 |
150 |
10 |
1.52 |
| 2 |
50.8 |
2.520 |
64.0 |
200 |
60 |
12 |
300 |
150 |
10 |
2.17 |
| 2 1/2 |
63.5 |
3.020 |
76.7 |
200 |
60 |
15 |
375 |
150 |
10 |
2.62 |
| 3 |
76.2 |
3.559 |
90.4 |
200 |
60 |
20 |
500 |
150 |
10 |
3.45 |
| 4 |
101.6 |
4.654 |
118.2 |
200 |
60 |
28 |
700 |
150 |
10 |
5.21 |
| 5 |
127.0 |
5.866 |
149.0 |
200 |
60 |
40 |
1,000 |
150 |
10 |
8.04 |
| 6 |
152.4 |
6.909 |
175.5 |
200 |
60 |
48 |
1,200 |
150 |
10 |
10.71 |
|

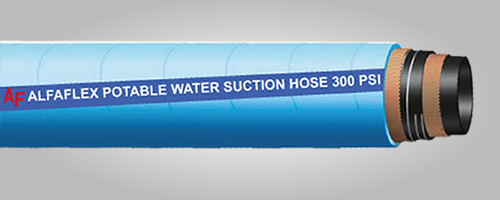

| Alfaflex Potable Water Suction Hose 300 PSI |
|
| Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils. |
|
 T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX POTABLE WATER SUCTION HOSE 300 PSI WP.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
|
| I.D. |
O.D. |
Standard Length |
Bend Radius |
Working Pressure |
Approx. Weight |
| in |
mm |
in |
mm |
ft |
m |
in |
mm |
PSI |
kg/cm2 |
kg/m |
| 1 |
25.4 |
1.480 |
37.6 |
200 |
60 |
6 |
150 |
300 |
20 |
1.29 |
| 1 1/4 |
31.8 |
1.732 |
44.0 |
200 |
60 |
8 |
200 |
300 |
20 |
1.51 |
| 1 1/2 |
38.1 |
1.980 |
50.3 |
200 |
60 |
10 |
250 |
300 |
20 |
1.74 |
| 2 |
50.8 |
2.520 |
64.0 |
200 |
60 |
12 |
300 |
300 |
20 |
2.49 |
| 2 1/2 |
63.5 |
3.020 |
76.7 |
200 |
60 |
15 |
375 |
300 |
20 |
3.01 |
| 3 |
76.2 |
3.559 |
90.4 |
200 |
60 |
20 |
500 |
300 |
20 |
3.96 |
| 4 |
101.6 |
4.654 |
118.2 |
200 |
60 |
28 |
700 |
300 |
20 |
5.99 |
|
