Petrolum Hose

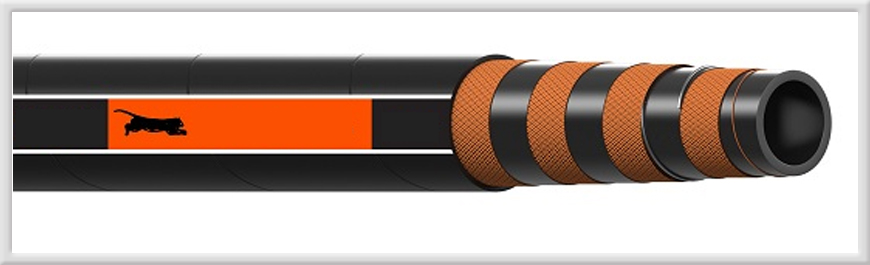

 Oil Suction & Discharge Hose 150 PSI
The industry standard for tank truck, in-plant and oil field loading operations requiring a strong and flexible hose. Handles gasoline, oil and other petroleum based products.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX TANK TRUCK HOSE 580PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 25.4 1.421 36.1 200 60 6 150 150 10 0.80
1 1/4 31.8 1.673 42.5 200 60 8 200 150 10 0.98
1 1/2 38.1 1.921 48.8 200 60 10 250 150 10 1.16
2 50.8 2.457 62.4 200 60 12 300 150 10 1.69
2 1/2 63.5 2.957 75.1 200 60 16 400 150 10 2.07
3 76.2 3.480 88.4 200 60 20 500 150 10 2.75
4 101.6 4.543 115.4 200 60 28 700 150 10 4.06
5 127.0 5.728 145.5 200 60 40 1,000 150 10 6.81
6 152.4 6.791 172.5 200 60 48 1,200 150 10 9.10
8 203.2 8.921 226.6 100 30 64 1,600 150 10 13.25
* Standard Hose Length : 200ft(60m), 100ft(30m)

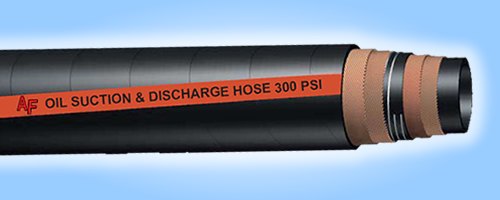

 Oil Suction & Discharge Hose 300 PSI
This hose is designed for offshore drilling and other demanding applications where longer lengths and fewer connections are desired. Premium hose design for superior performance and higher working pressure in tough environments. Cover withstands exposure to weather, salt water, sunlight and oil.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX OIL SUCTION & DISCHARGE HOSE 300 PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
1 1/2 38.1 1.953 49.6 200 60 10 250 300 20 1.25
2 50.8 2.504 63.6 200 60 12 300 300 20 1.87
2 1/2 63.5 3.004 76.3 200 60 16 400 300 20 2.30
3 76.2 3.622 92.0 200 60 20 500 300 20 3.23
4 101.6 4.717 119.8 200 60 28 700 300 20 4.97
6 152.4 6.925 175.9 200 60 48 1,200 300 20 9.30
8 203.2 9.05 230 100 30 64 1,600 300 20 14.5
* Standard Hose Length : 200ft(60m), 100ft(30m)
 Alfaflex Tank Truck Hose 580 PSI
This hose is designed for offshore drilling and other demanding applications where longer lengths and fewer connections are desired. Premium hose design for superior performance and higher working pressure in tough environments. Cover withstands exposure to weather, salt water, sunlight and oil.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX TANK TRUCK HOSE 580PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Bend Radius Working Pressure Approx. Weight
in mm in mm ft m in mm PSI kg/cm2 kg/m
2 50.8 2.606 66.2 200 60 12 300 580 40 2.43
3 76.2 3.764 95.6 200 60 20 500 580 40 4.38
4 101.6 4.937 125.4 200 60 28 700 580 40 7.01
6 152.4 7.007 178.0 200 60 48 1200 580 40 10.5
 Alfaflex Oil Discharge Hose 200 PSI
Oil discharge hose designed for use on trucks, docks and barges where a light, easily handled hose is desired and when the application does not have to resist a vacuum. Also used in oil field liquid mud applications.

T Black high grade of oil resistant Nitrile(NBR)
C Black abrasion, oil, weather & ozone resistant Neoprene(CR)
R Multiple textile plies with dual helix wire
T.P. -20°F to +180° F (-30°C to + 80°C)
S.F. 4:1
B ALFAFLEX OIL DISCHARGE HOSE 200PSI W.P.
* T - Tube, C - Cover, R - Reinforcement, T.P - Temperature, S.F. - Safety Factor, B - Branding.
I.D. O.D. Standard Length Working Pressure Approx. Weight
in mm in mm ft m PSI kg/cm2 kg/m
1 1/2 38.1 1.965 49.9 200 60 200 14 1.07
2 50.8 2.465 62.6 200 60 200 14 1.35
3 76.2 3.575 90.8 200 60 200 14 2.44
4 101.6 4.638 117.8 200 60 200 14 3.50
6 152.4 6.803 172.8 200 60 200 14 6.55
8 203.2 8.913 226.4 100 30 200 14 9.81
