Floating fenders , multipurpose & fixed fender solution
Floating fenders
FenderTec supplies different types of floating fenders world wide. Our pneumatic fenders comply with the requirements of ISO 17 357, ensuring high performance and quality floating fenders for safe berthing operations.
Features
- High enery absorption with a low reaction force
- Adjust performace by varying internal pressure
- Low and easy maintenance
- Low transportation costs - pneumatic fenders can be deflated and folded for transport
- Suitable for areas with tidal differences
A Diameter excluding tire net (mm) |
B Lenght excluding tire net (mm) |
Initial internal pressure (kPa) |
Diameter including tire net (mm) |
Lenght including tire net (mm) |
Weight fender body including tire net (kg) |
Energy absorption at 60% deflection (kN/m) |
Reaction force at 60% deflection (kN) |
|---|---|---|---|---|---|---|---|
| 500 | 1000 | 50 | 640 | 1255 | 77 | 6 | 64 |
| 1000 | 1500 | 50 | 1240 | 1715 | 184 | 32 | 182 |
| 1000 | 2000 | 50 | 1240 | 2215 | 230 | 45 | 257 |
| 1200 | 2000 | 50 | 1440 | 2215 | 270 | 63 | 297 |
| 1500 | 3000 | 50 | 1720 | 3330 | 553 | 153 | 579 |
| 2000 | 3500 | 50 | 2260 | 3830 | 928 | 308 | 875 |
| 2500 | 4000 | 50 | 2760 | 4380 | 1385 | 663 | 1381 |
| 2500 | 5500 | 50 | 2760 | 5880 | 1740 | 943 | 2019 |
| 3300 | 6500 | 50 | 3740 | 6940 | 4057 | 1814 | 3015 |
Multipurpose & Fixed Fender Solution

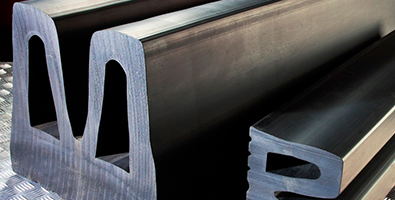

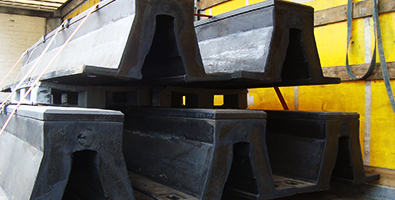

 Arch fixed fenders |

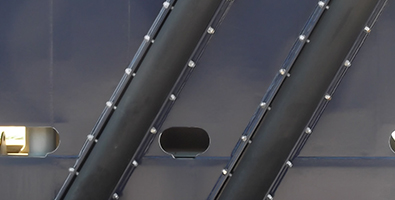

 Leg fenders |

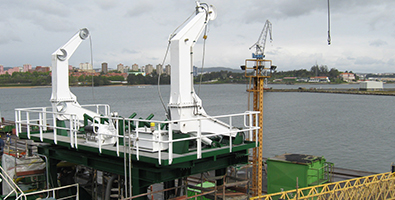

 Fender davits |
 Multi-purpose fenders |
 Vessel fendering systems |
 Bespoke fenders |
