Asbestos rope / Cloth, Rockwool / Calcium silicate

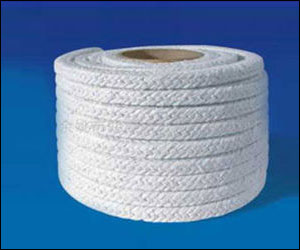

Asbestos rope

Definition

Asbestos rope was commonly used in construction as gaskets, or seals that fill the space between two adjacent surfaces. Rope and rope packing are insulation materials that are used to seal and protect boilers, pipes and heaters from fire.

Synonyms of product

Asbestos Rubber Sheets

Description
Leveraging on our industrious experience, we offer asbestos braided ropes in standard as well as in customer specific options. These are manufactured using white Chrysotile yarn twisted around in m/c. We make use of our finest quality asbestos yarn. These Asbestos rope is also known as Asbestos cord, line, cable, lead, twine, string.

Asbestos ropes are widely used in the heavy machinery industry in the processes of heat insulation of pipes and boiler sealing, hot blast valves, blue cap doors. They can be effectively used in applications with temperature up to 350 degree Celsius beyond which it starts to crumble. Moreover, these are widely acknowledged for their higher efficiency, low cost maintenance and consistent output.

Product wise application search strings
It was commonly used to make fire retardant blankets, oven mitts, ironing board covers and gaskets for boilers.

Technical Specification

Shape : Square/Round
Color : White
Hardness : Optimum
Tolerance : +/- 2.5 %

Rockwool

Rockwool fibres are inorganic and composed mainly of silica and alumina, Rockwool is manufactured from various types of rock of predetermined chemical compositions which is melted at super high temperature in a technically advanced Cupola, The resulting molten alumino-silicate is drum spun at very high speed to produce “ROCK FIBRES”
that are bonded together with a thermosetting resin and Additives.

The fibres are also sprayed with binder’s to make fibres retain its shape and prevent shrinkage during storage. The fibres are also impregnated with special additives to keep it water repellent.

horizon conductivity is the main product feature of any thermal insulation. We at horizon ensures the material goes through highest quality standards ,FRF Rockwool shows extremely low thermal conductivity values even at low densities due to its fibrous composition. As per ASTM C-335, ASTM C-177 / ASTM C-518, the coefficient of thermal conductivity shows the insulating capacity. Rockwool products offer extremely low thermal conductivity as tested in accordance with ASTM C -335 and ASTM C-177 /ASTM C-518 (ISO 8302 / ISO 8301) equivalent to BS – 874.

We have two Brands In GCC fUJAIRA and KIMMCO ISSOVER,we Provide high Quality Stone Wool Insulation Materials in diffrent Shapes(Slab Wired mat,Roll,pipe Section & loose Wool) for all types of buildings(Residential & Non Residential) and Industrial Facilities.the Factory is located in the Indutrial are of Yanbu - West of saudi Arabia.

Advantages : High thermal Performance,Excellent acoustic Performance,Energy saving,fire safety.

Stone Wool is the best value insulation material and our Products are "best for Buildings".

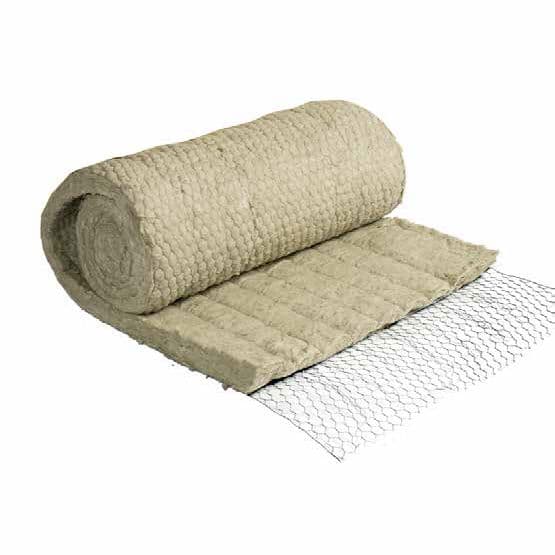

ROCKWOOL MATTRESS - BLANKET

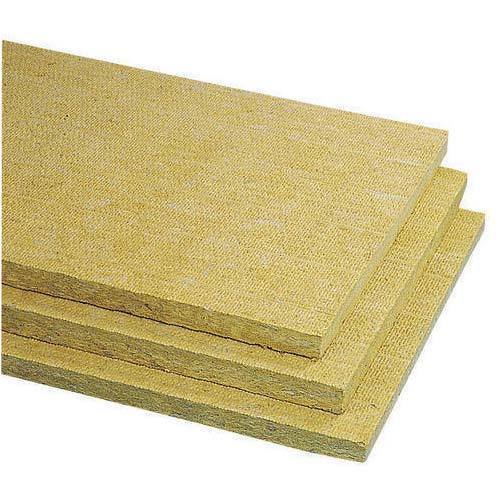

ROCKWOOL SLABS

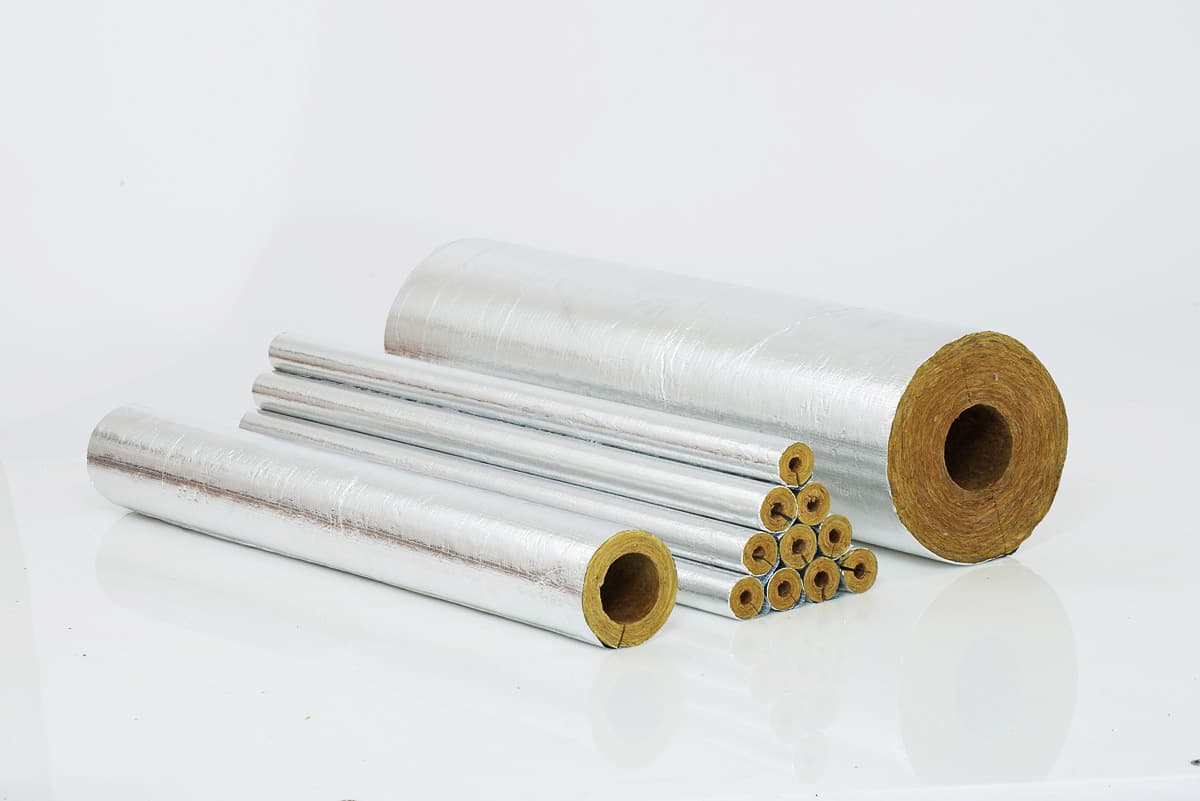

ROCKWOOL PIPE SECTION

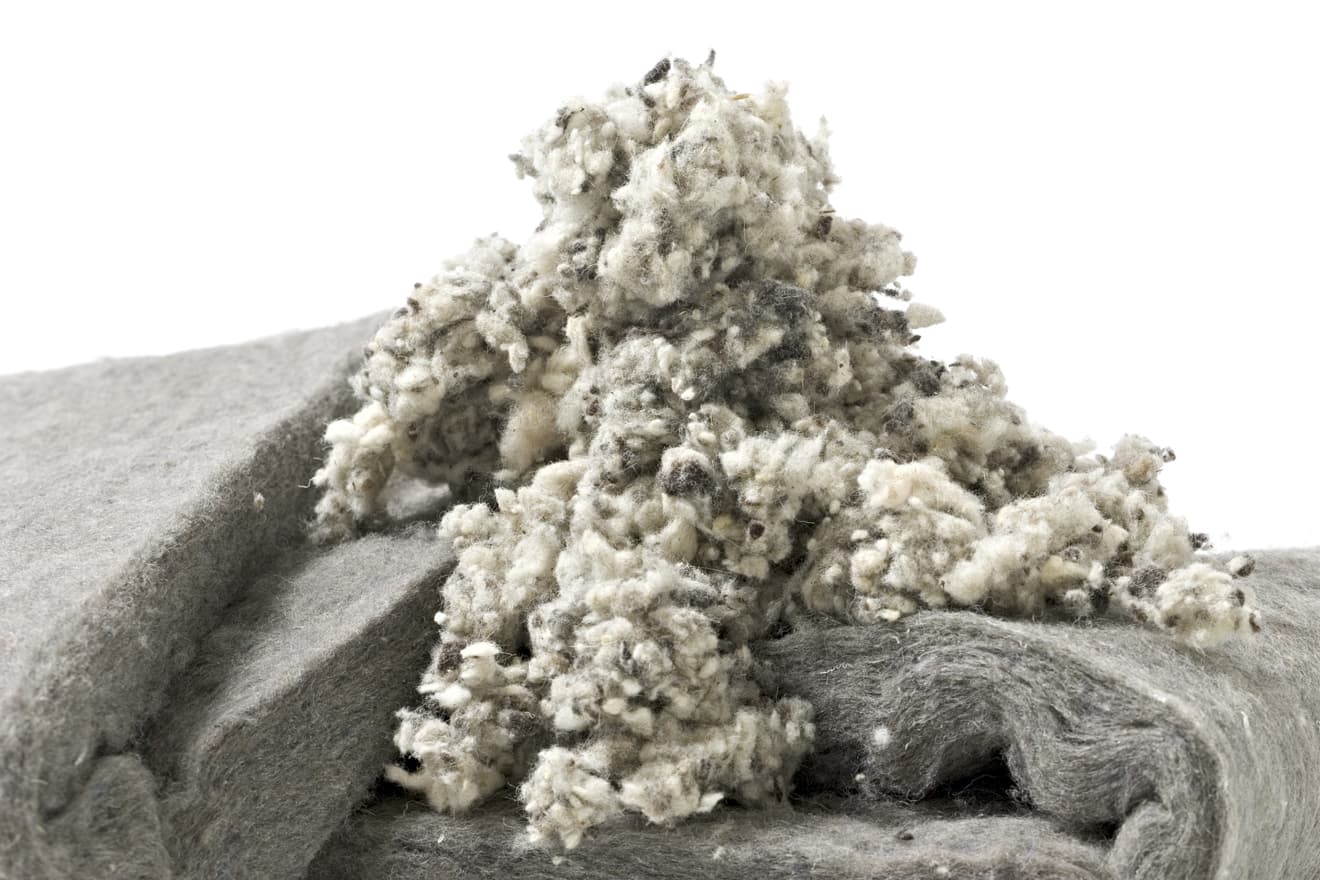

ROCKWOOL LOOSE WOOL

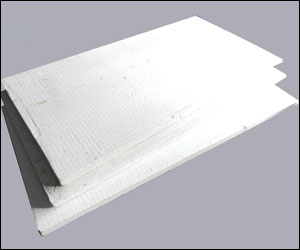

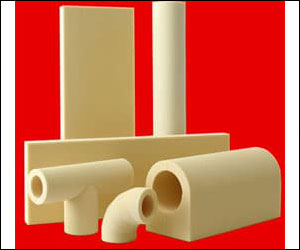

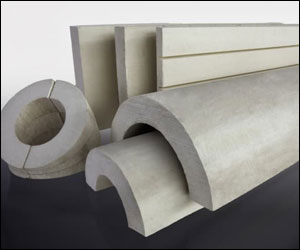

Calcium silicate

calcium silicate from HIL , India is suitable for thermal insulation in furnace, cave dwelling of steel mill, petrochemical, ceramics, glass, cement industries and power industries as well as other various ancillary heating equipment.

The main constituents of calcium silicate is xonotlite and reinforced glass fiber, no asbestos. It is a kind of high efficient energy-saving material with temperature limited 800 oC -1100oC . Characterised by low bulk density, high specific strength, superior heat resistance, outstanding thermal insulation, excellent durability, chemical corrosion resistance, easy to be cut by saw and easy installation, calcium silicate can be widely used for the insulation of industrial kiln.

Properties of calcium silicate :

* High strength: the strongest one among the inorganic thermal insulation materials with the similar density;
* Non-deformation within the temperature range;
* Low thermal conductivity;
* Asbestos-free.

Application of calcium silicate:

* Cement industry: preheaters and cyclone separators, decomposition kiln, tertiary air duct and cooler;
* Nonferrous metallurygical industry: aluminum power calciner and electrolysis groove;
* Petrochemical industry: Splitting furnace, catalytic cracking furnace, petroleum pipeline, underground heat-flooding;
* Metallurgical industry (steel plant): hot-rolling heat furnace, cool-rolling mill set, RH vacuum degassing furnace, smelters, hot deformation and heat treatment plants;
* Power plant:preheat stove, pipe;
* Glass industry:melting furnace and recuperator, annealing furnace and cooling channels.

Product range:
is available in 3 Grades
